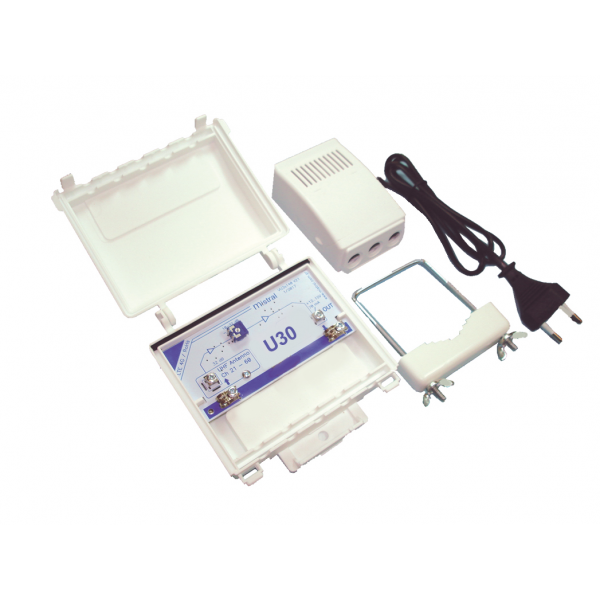

U30

Ηigh gain amplifier.

Suitable for areas with low signal reception.

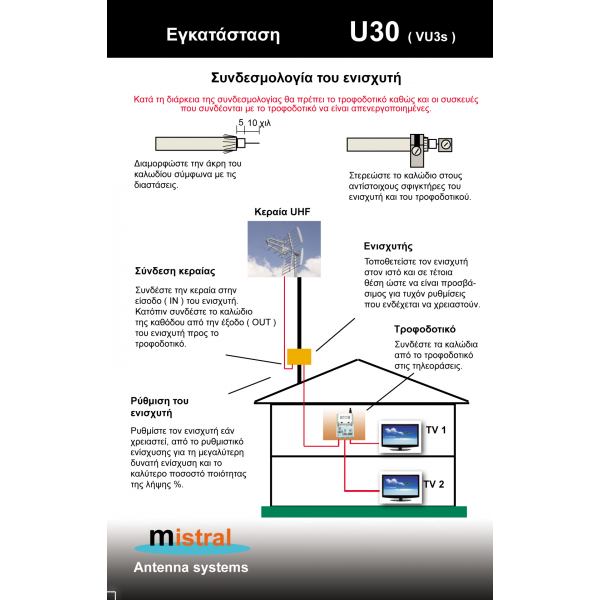

The cables connections is made by terminals.

Specifications

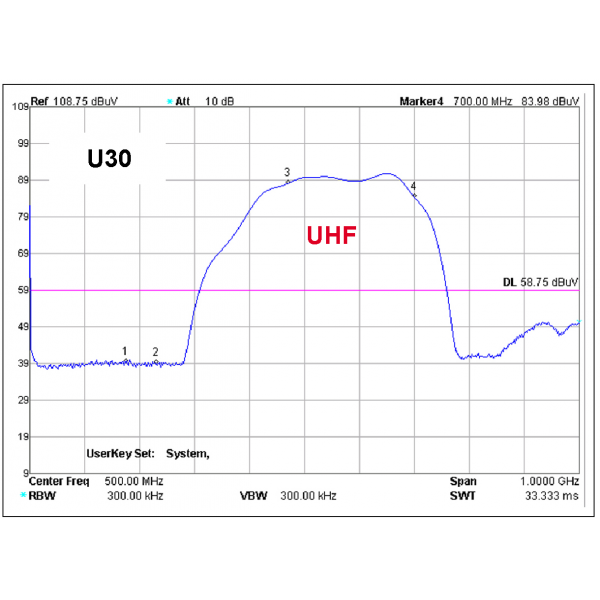

UHF Input                   : Channels 21 - 48.

Gain                           : 10....32 dB adjustable.

GSM filter                    :  LTE  3G 4G and 5G.

Output level                 :  105  dB / μV.

Μeasurement standard  : 2 tone test EN 50083-3 to Ch 37 the IMD3 is -60 dB.
