2UVFM 30dB
Ηigh gain amplifier.
Suitable for areas with low signal reception.
Accepts two UHF and one FM or VHF antennas.
The cables connections is made by terminals.
Specifications
VHF input : FM, ch 2-4, 5-12, S11-S20 -2 dB gain.
This is an auxiliary input for modulators and radio.

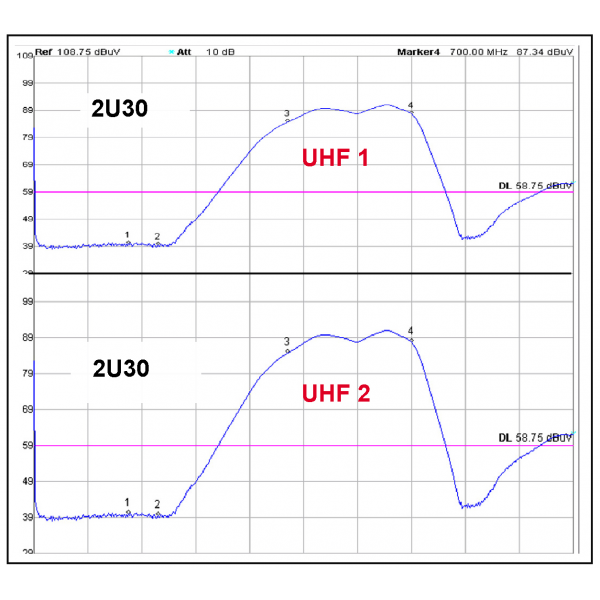

UHF 1 input : ch 21 - 60 Gain 10 - 32 dB adjustable.
UHF 2 Input : ch 21 - 60 Gain 10 - 32 dB adjustable.
GSM filter : LTE 3G and 4G.
Output level : 107 dB / μV.
Power supply : 230 VAC / +12VDC 50 mA
