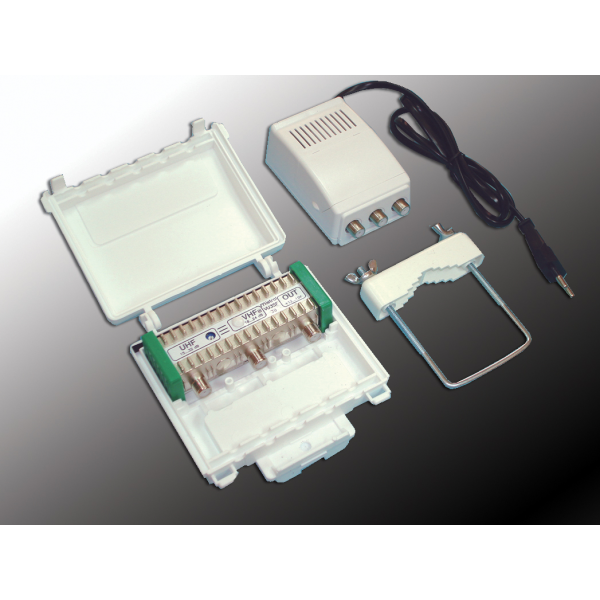

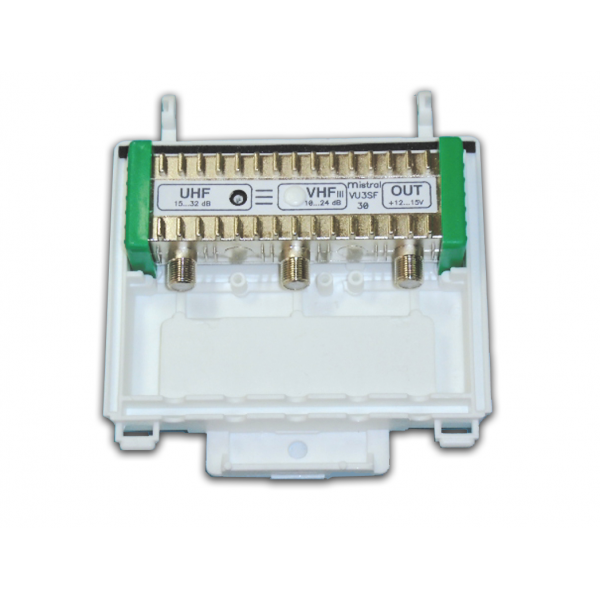

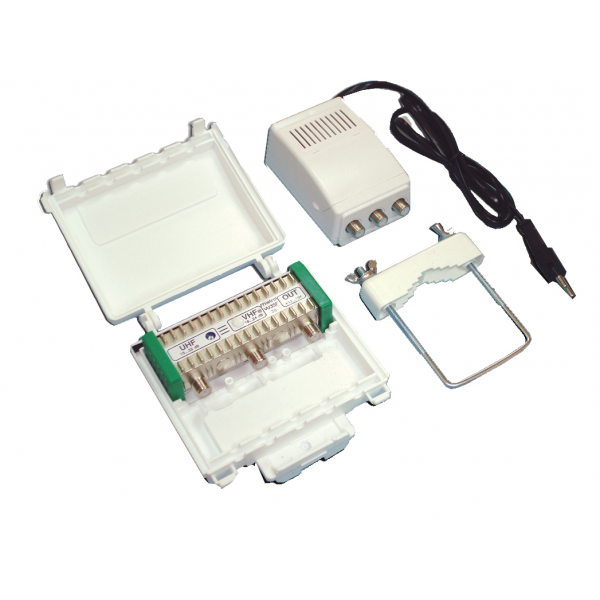

VU3sF30

Ηigh gain sealed amplifier.

Suitable for areas with low signal reception.

Cables connections with F connectors.

Specifications

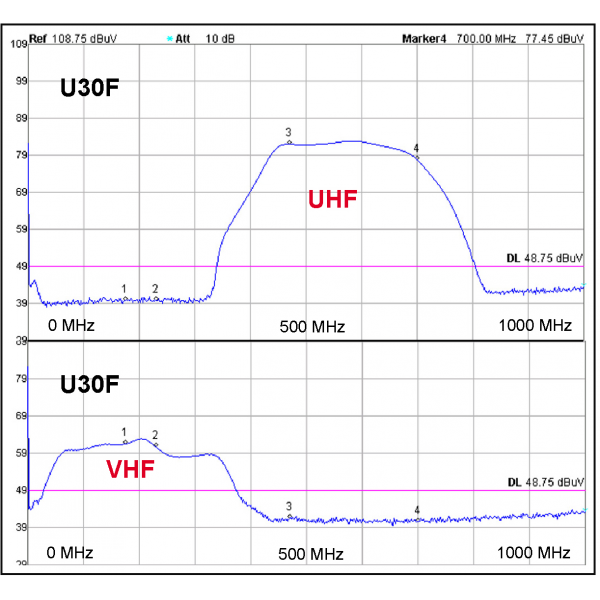

VHF input      : FM, ch 2 - 4, 5 - 12, S11 - S20       -2 dB gain.

                      This is an auxiliary input for modulators and radio.

UHF Input      : ch 21 - 48        Gain   10....32 dB adjustable.

GSM filter       :  LTE  3G 4G and 5G.

Output level   :  107  dB / μV.
