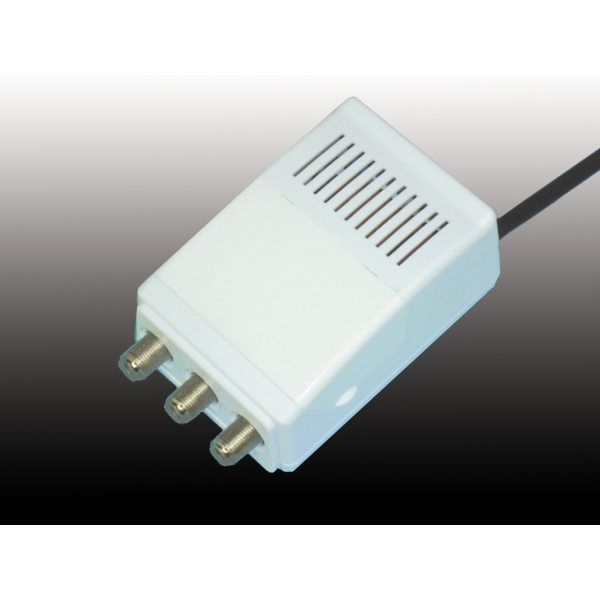

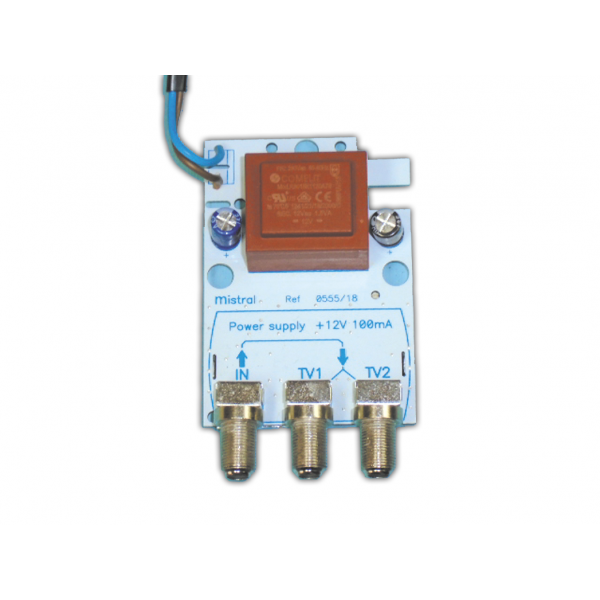

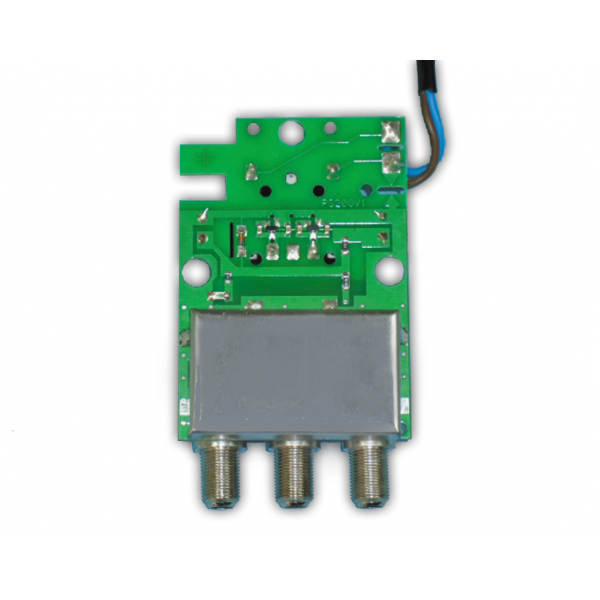

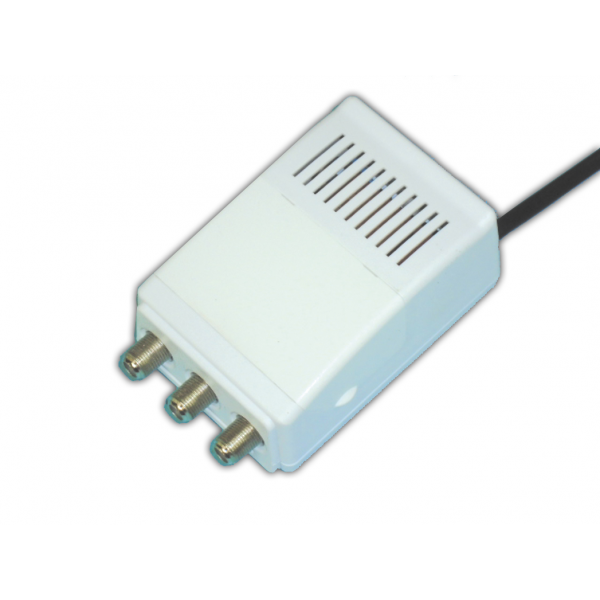

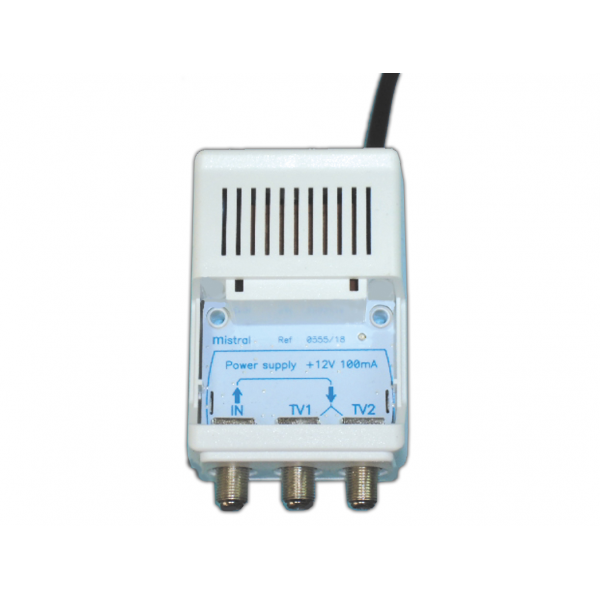

PS 100F
Power supply for antenna amplifiers with F connectors.
Specifications
Input voltage : 210.....250 VAC 50 c/s
Output voltage : +12V 50 mA.
Stabilization : +/- 1V.
Voltage ripple : At +12V 50 mA is 0.1 VPP.
Current limiter : 175 mA ( short contact ).
Pass band : 100 - 1000 MHz.
Passage losses : - 3 dB.
Type : Linear.
Input : One.
Outputs : Two
Input voltage : 200-250 VAC
Output level : +-12 100mA
Stabilization : + / - 1V
Pass band : 170 - 1000 MHz k 5- 69
Type : Linear
- See more at: http://mistral.imscloud.net/en/power-supply/124-power-supply-ps100.html#sthash.FG5102Ee.dpufPower supply for antenna boosters with clamps.
Input voltage : 200-250 VAC
Output level : +-12 100mA
Stabilization : + / - 1V
Pass band : 170 - 1000 MHz k 5- 69
Type : Linear
- See more at: http://mistral.imscloud.net/en/power-supply/124-power-supply-ps100.html#sthash.FG5102Ee.dpufPower supply for antenna boosters with clamps.
Input voltage : 200-250 VAC
Output level : +-12 100mA
Stabilization : + / - 1V
Pass band : 170 - 1000 MHz k 5- 69
Type : Linear
- See more at: http://mistral.imscloud.net/en/power-supply/124-power-supply-ps100.html#sthash.FG5102Ee.dpuf
No customer comments for the moment.
