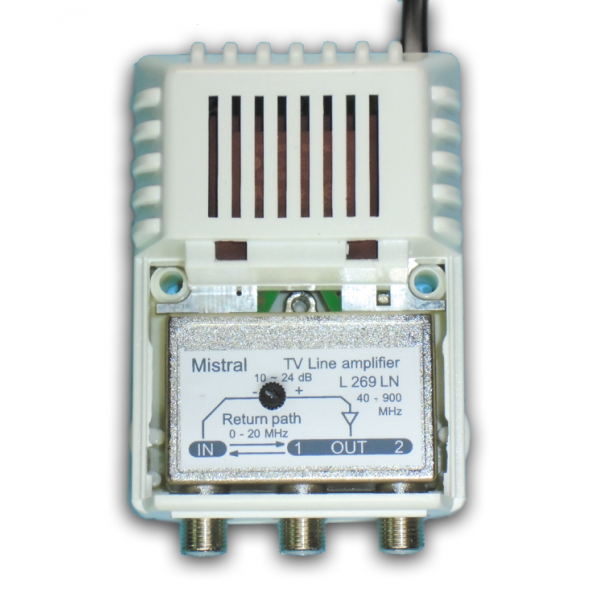

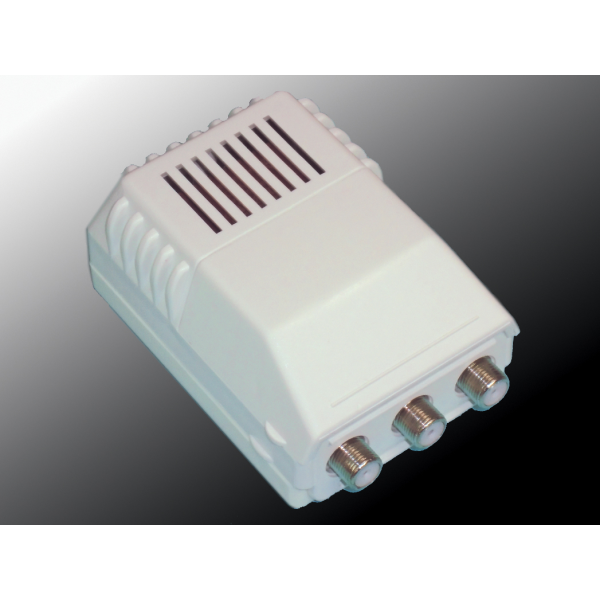

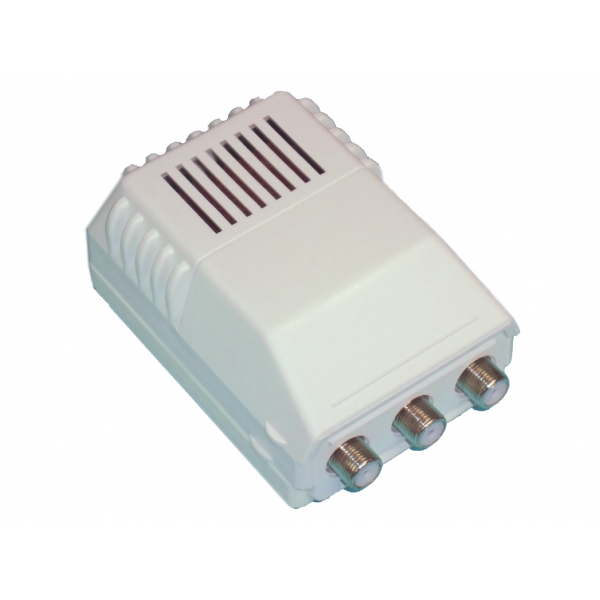

L269

These small amplifier increases the sensitivity to any digital receiver so as to open the digital signal from lowest signal level.

Application

The sensitivity of this amplifier is better than that of a receiver, so the image blocking limited or eliminated altogether.

It has two exits thus to make it suitable for connecting to second TV.

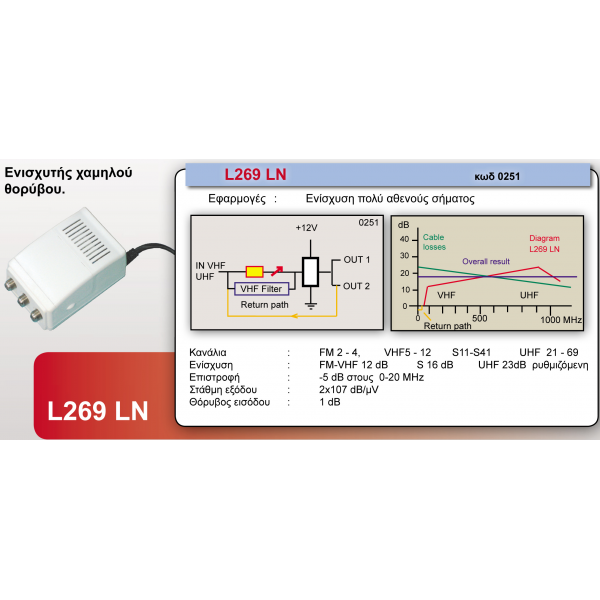

Specifications

Channels   VHF  : FM ,  k 2-4, k 5-12, s11- s41.    Gain    :  12 dB.

Channels UHF    : k 21 - 69.                                Gain    : 10 ... 30 dB typ   adjustable .

Passthrough      : Bidirectional 0 - 20 MHz for remote control signals.

Output level      : 2 x 107 dB / μV.

Input               : One.

Output             : Two.

Connectors       :  F .

Supply              : 230 VAC     50  c/s    2 Watt

Technology       : Low noise

Only few products of Mistral feature low noise technology.

These are :

The mast ampifier VU3sF - 40 code 0215.

The line amplifier Magic Box code 0119.

The line amplifier L269 code 0251.

The indoor antenna Julia code 0307 και

The indoor antenna Julia HD code
