1 x 112

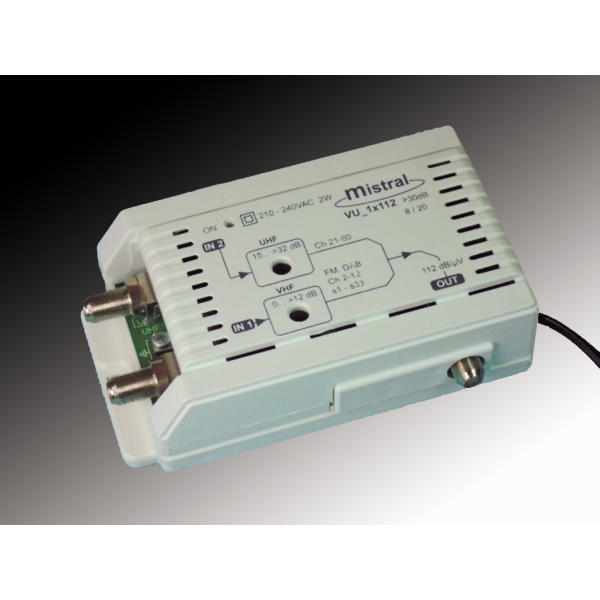

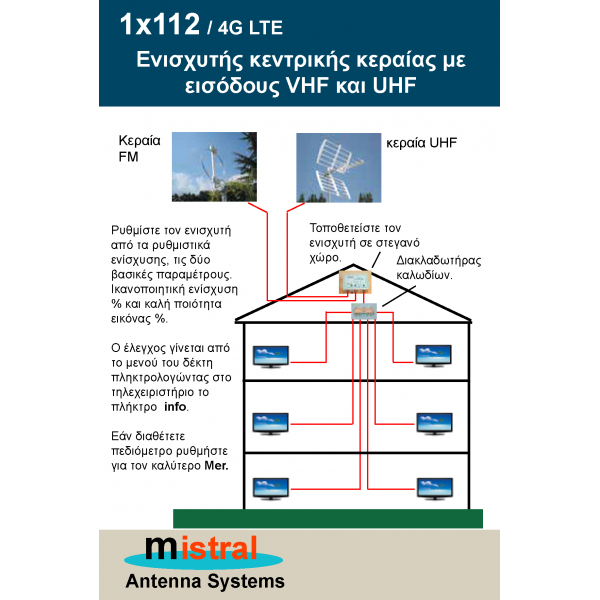

One output multiband amplifier for small apartment buildings.

Specifications

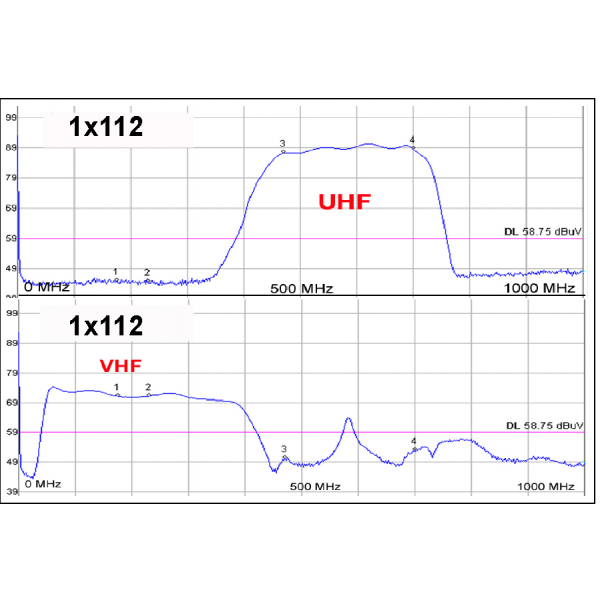

VHF  Channels          :  FM,  k 2 - 4, k 5 - 12, s11 - s20.    Amplification 8 .. 26 dB ( typ ) adjustable.

                                       This is an auxiliary input for modulators and radio.

UHF  channels            :  k 21 - 48.  Amplification  15 .. 32 dB ( typ) adjustable.

Output level                 : 1 x 112 dB / μV  ( typ )    120 dB / μV  max .

Inputs                         :  Two     VHF,     UHF.

Output                        :  One.

Power supply              :  Linear 12 VDC / 150 mA  with two parallel transformers.

Operating voltage        :  230 VAC +/- 10 %   6 Watt.

Connectors                :  F .

Filter GSM                  : LTE   4G 5G
